Primitives

Overview

Primitives are the bridge between C++ application code and scripts in Uniot Core. They are C++ functions callable from script that enable hardware access, complex calculations, and integration with application logic.

Uniot Core provides two types of primitives:

  1. Built-in Primitives: Pre-implemented functions for common hardware operations (GPIO, buttons)

  2. Custom Primitives: User-defined functions for application-specific logic

A third group is always present and needs no registration: task, is_event, pop_event and push_event are the core primitives every script is built around. They are described on the Scripting page.

Use Cases

Common scenarios where primitives are valuable:

  • Hardware Control: Expose sensors, actuators, and peripherals to scripts

  • Complex Logic: Implement algorithms in C++ but allow script-based configuration

  • State Management: Let scripts read and modify device state

  • Custom Protocols: Implement device-specific communication protocols

How Primitives Work

Execution Flow

  1. Script Received: Device receives a script via MQTT, or restores the persisted one from flash at boot

  2. Interpreter Built: A fresh UniotLisp interpreter is created and every registered primitive is installed into it

  3. Primitive Call: Script calls a primitive function

  4. C++ Execution: Primitive validates its arguments and executes C++ code

  5. Result Return: Result is converted back to a Lisp value

  6. Script Continues: Script processes the result

Type System

Primitives declare the type of each argument. The declaration is checked when the primitive is called, and a mismatch stops the script with an error such as [dwrite] Invalid type of 1 parameter, expected <Bool/Int>, got <Symbol>.

Lisp Type
Accepts
Read with
Notes

Lisp::Int

Integer

getArgInt(i) → int

UniotLisp has no floats; scale fractional values to integers

Lisp::Bool

#t / () (true / nil)

getArgBool(i) → bool

There is no #f; () is the only false value

Lisp::BoolInt

A boolean or an integer

getArgBool(i) or getArgInt(i)

getArgBool treats non-zero as true; getArgInt turns #t into 1 and () into 0

Lisp::Symbol

A symbol, usually quoted ('name)

getArgSymbol(i) → const char *

Used for event names and other identifiers

Lisp::Cell

A list, usually a quoted expression

getArg(i) → raw Object

Received unevaluated; task uses this for its body and evaluates it later

Lisp::Any

Anything

Any of the above

Skips validation for that argument; the accessor you call still checks its own type

The return type is declared the same way and produced with makeInt(), makeBool() or makeSymbol(). Every primitive must return something; an action-only primitive returns a boolean.

How the Platform Learns About Primitives

A primitive's name, return type and argument types are declared once, in its describe() call. When the device connects to MQTT, Uniot Core sends that description for every custom primitive in the device status packet, next to the list of registers and the FOURCC labels of the objects behind them. The platform uses this to draw the blocks in the Visual Editor, to generate the user library block, and to show the pin mapping on the device's Registers tab. Nothing about a primitive has to be configured on the platform side.

User Library Block

Using the Visual Editor? This block is generated for you from the device's primitive list. You can skip this section unless you write scripts by hand.

Scripts begin with a metadata block that lists the primitives the script uses. It is written entirely as comments, so the interpreter on the device ignores it. Its readers are the tools around the script: the Visual Editor writes it, and the Code Editor and the Emulator rely on it to know which functions exist. A hand-written script that calls a primitive missing from the block fails to compile in the Emulator with "Undefined symbol".

Structure

The user library block is enclosed by special markers, exactly as the Visual Editor emits it:

Purpose

  • Editor and Emulator: They only know the primitives declared here, built-ins included

  • Documentation: The block doubles as inline documentation of what the script expects from the device

When You Need to Care About This

  • Visual Editor Users: Nothing to do; the block is generated and kept up to date for you

  • Manual Script Writers: Required; add the block at the top of every script and declare every primitive the script calls, including built-ins such as dwrite or aread

Syntax: defjs Declarations

Each primitive is declared on its own line:

The parameter names are only labels. The Visual Editor uses pin, state, value and button_id for the built-ins and _0, _1, … for custom primitives.

Example

If you have a custom primitive set_led_brightness that takes two integers (LED index and brightness) and returns a boolean:

Notes

  • The block is delimited by ;;; begin-user-library and ;;; end-user-library markers

  • Each declaration is on a single line, prefixed with ; (comment)

  • The ;-> arrow indicates the return type

  • Multiple primitives can be declared in the same block

  • The block appears at the very beginning of the script

  • The device itself never reads it; a script without the block runs on the device exactly the same

Built-in Primitives

Uniot Core includes a set of built-in primitives for common hardware operations. These primitives work in conjunction with the Register system, which provides a layer of abstraction between scripts and physical hardware pins.

The Register System

The Register system maps logical pin indices (used in scripts) to physical GPIO pins. This abstraction provides several benefits:

  • Safety: Scripts can't accidentally access unregistered pins

  • Flexibility: Physical pin assignments can change without modifying scripts

  • Portability: Same scripts work on different hardware configurations

  • Organization: Group related pins under named registers

How It Works

  1. Registration: C++ code registers physical GPIO pins using Uniot.registerLisp*() methods

  2. Mapping: Each registered pin gets a logical index (0, 1, 2, ...) in registration order

  3. Access: Scripts use logical indices to access pins through built-in primitives

  4. Validation: Primitives validate indices against registered pins before hardware access

Three rules follow from this design:

  • A built-in primitive exists only when its register has at least one entry. A sketch that never calls registerLispAnalogInput() has no aread; a script calling it fails with an undefined symbol.

  • Each pin type has its own index namespace. Digital output index 0 and analog output index 0 may be the same physical pin or different ones; they are looked up in different registers.

  • Registering again replaces the previous set. List every pin of one type in a single registerLisp*() call.

Registering GPIO Pins

Before using built-in primitives, you must register GPIO pins:

Register inputs before Uniot.begin(). Registering a pin for dread or aread sets it to plain INPUT, which clears any pull resistor. begin() gives every button on such a pin its pull back, but only for buttons it knows about at that point.

Quick Reference

Primitive
Purpose
Registration Method
Signature
Returns

dwrite

Write digital pin (HIGH/LOW)

registerLispDigitalOutput()

(dwrite index state)

Bool: the state written

dread

Read digital pin (HIGH/LOW)

registerLispDigitalInput()

(dread index)

Bool: #t HIGH, () LOW

awrite

Write analog pin (PWM)

registerLispAnalogOutput()

(awrite index value)

Int: the value written

aread

Read analog pin (ADC)

registerLispAnalogInput()

(aread index)

Int: 0-1023

bclicked

Check button click

addLispButton()

(bclicked index)

Bool: #t once per click

An index that is not registered stops the script with [dwrite] pin is out of range (or [bclicked] wrong button id); the message appears on the device's Logs tab.

Available Built-in Primitives

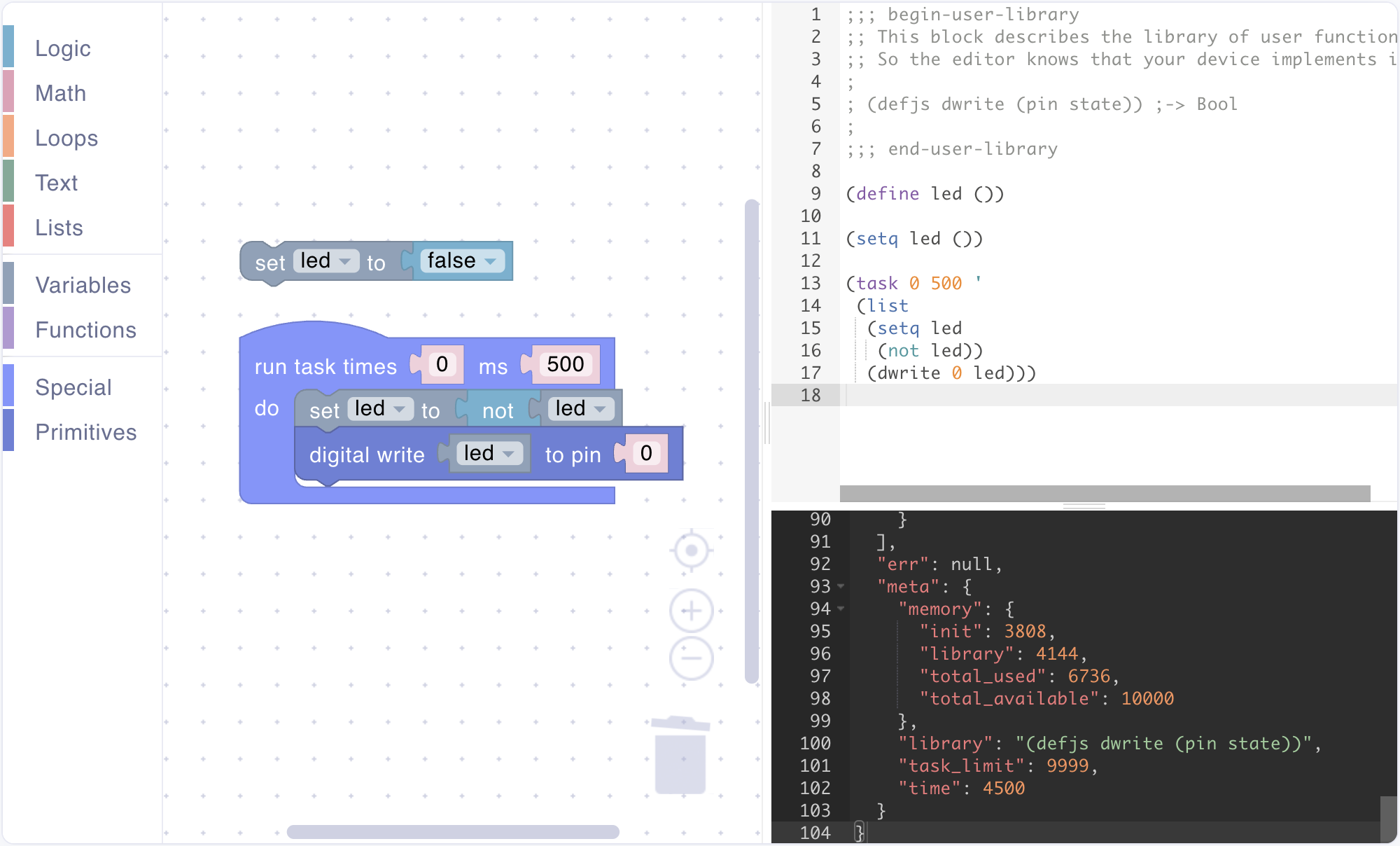

1. dwrite - Digital Write

Writes a digital value (HIGH/LOW) to a registered output pin.

Parameters:

  • index (Int): Logical pin index (0-based)

  • state (Bool/Int): Pin state — accepts a boolean (#t / ()) or an integer (non-zero = HIGH, 0 = LOW)

Returns: The state written, as a boolean

C++ Registration:

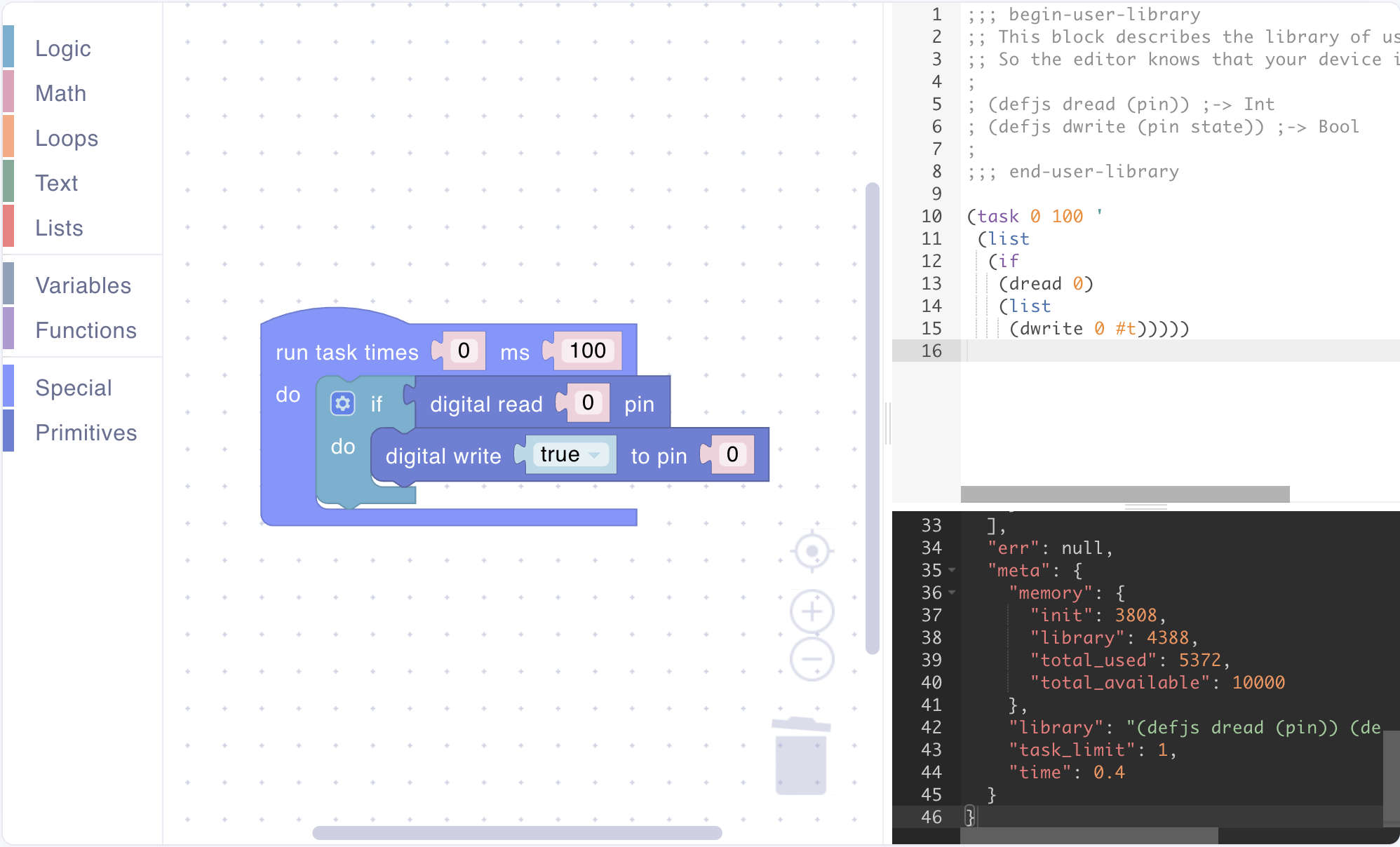

2. dread - Digital Read

Reads a digital value (HIGH/LOW) from a registered input pin.

Parameters:

  • index (Int): Logical pin index (0-based)

Returns: Boolean state (#t = HIGH, () = LOW)

C++ Registration:

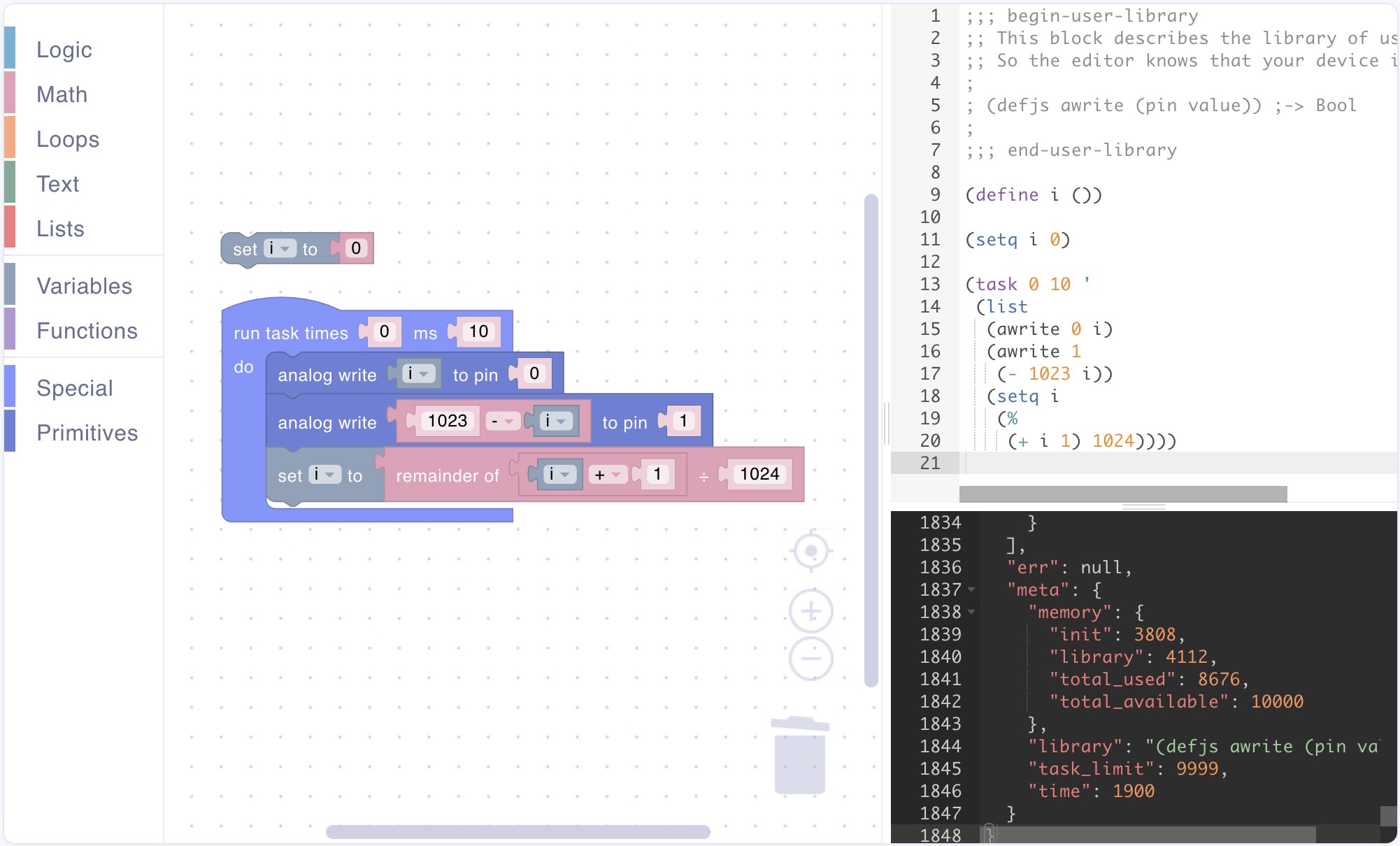

3. awrite - Analog Write (PWM)

Writes an analog value (PWM) to a registered output pin.

Parameters:

  • index (Int): Logical pin index (0-based)

  • value (Int): PWM value (0-1023)

Returns: The value written

The range is 0-1023 on every chip. When at least one analog output pin is registered, Uniot Core sets the PWM resolution to 10 bits during begin(), so a script writes the same range on an ESP8266 and on an ESP32.

C++ Registration:

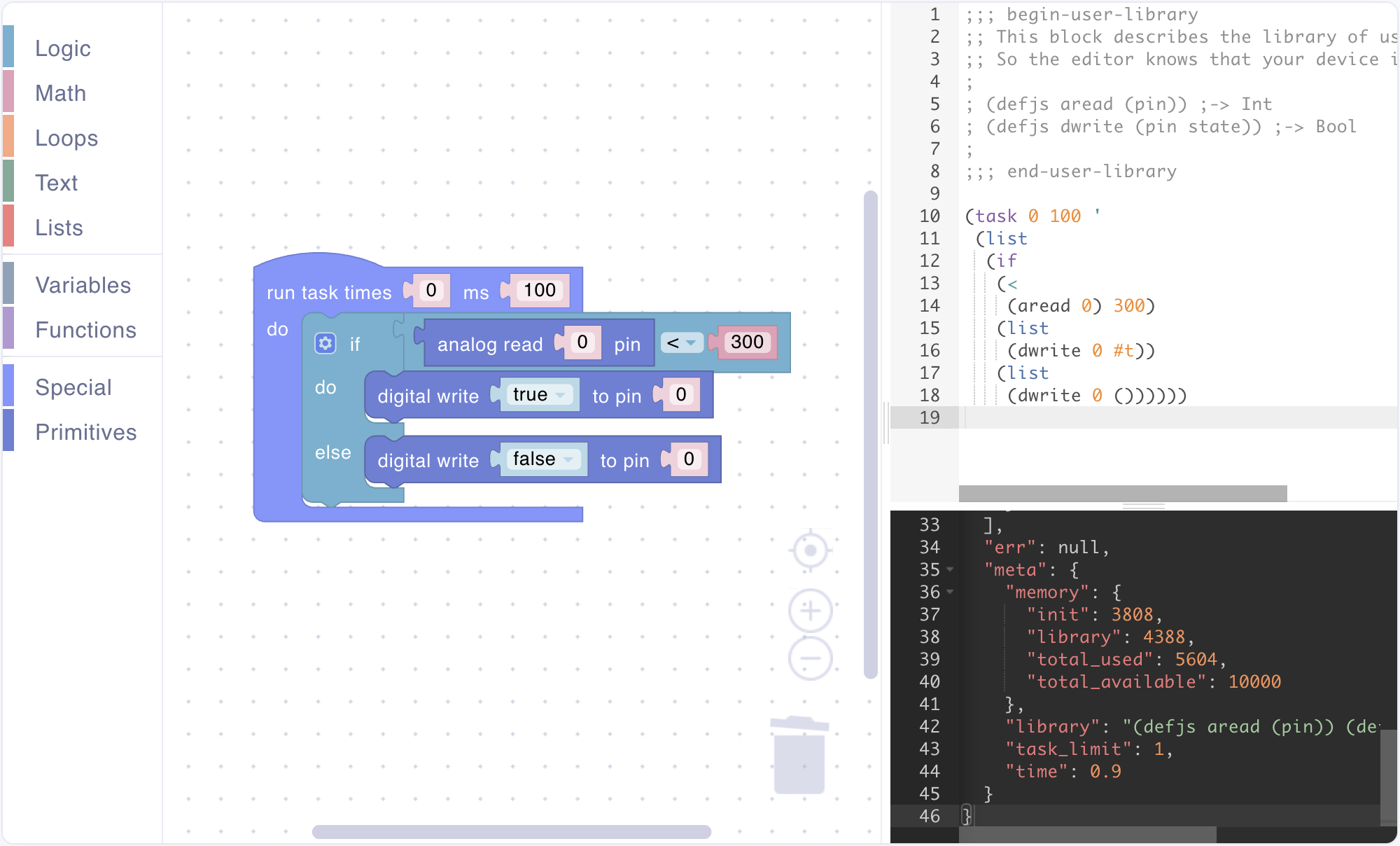

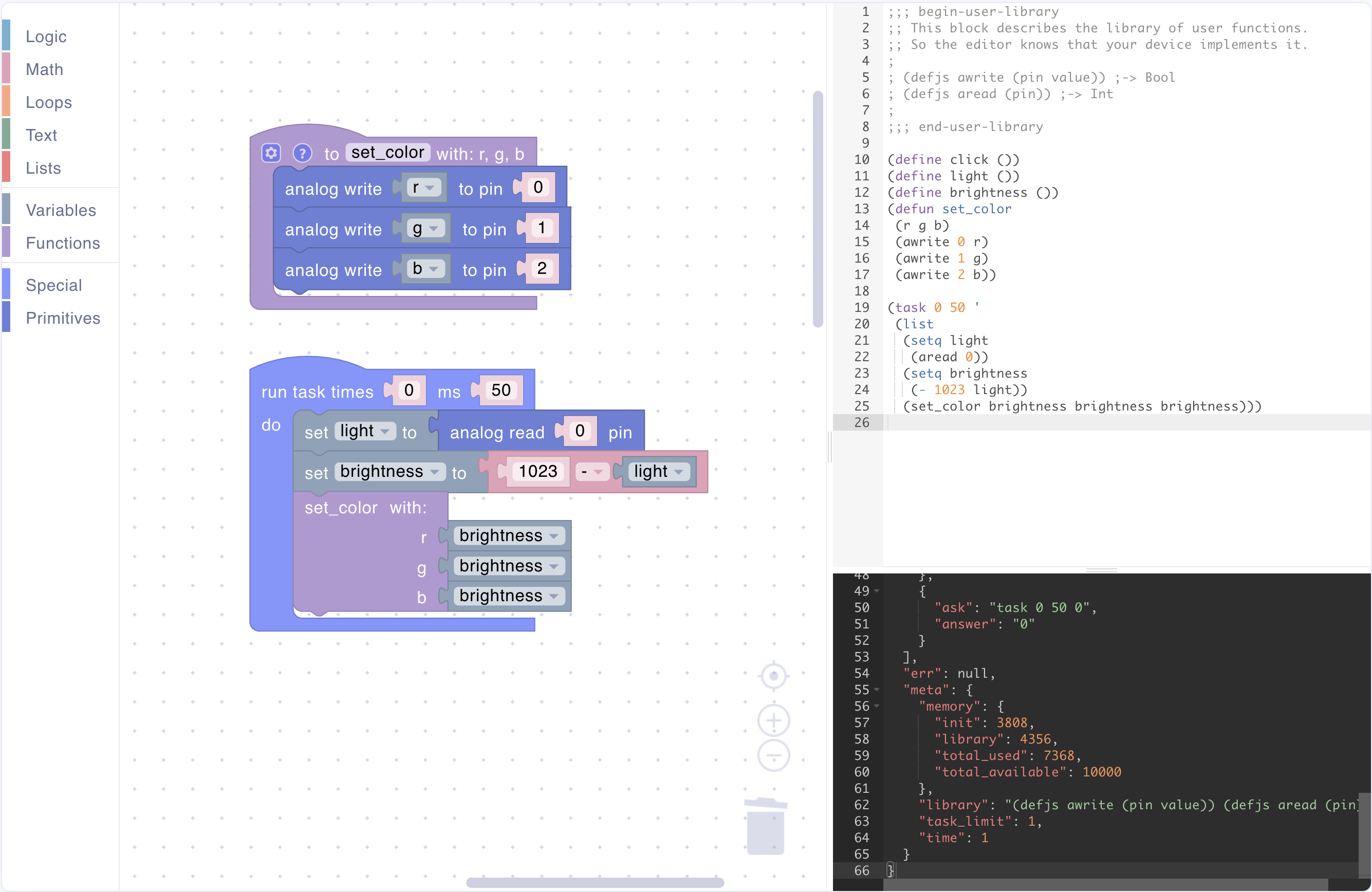

4. aread - Analog Read

Reads an analog value from a registered input pin.

Parameters:

  • index (Int): Logical pin index (0-based)

Returns: Integer value in the range 0-1023

The range is the same on every chip. The ESP8266 ADC is 10-bit already; on the ESP32 family Uniot Core sets the read resolution to 10 bits during begin() when at least one analog input pin is registered. The voltage behind a reading still depends on the board.

C++ Registration:

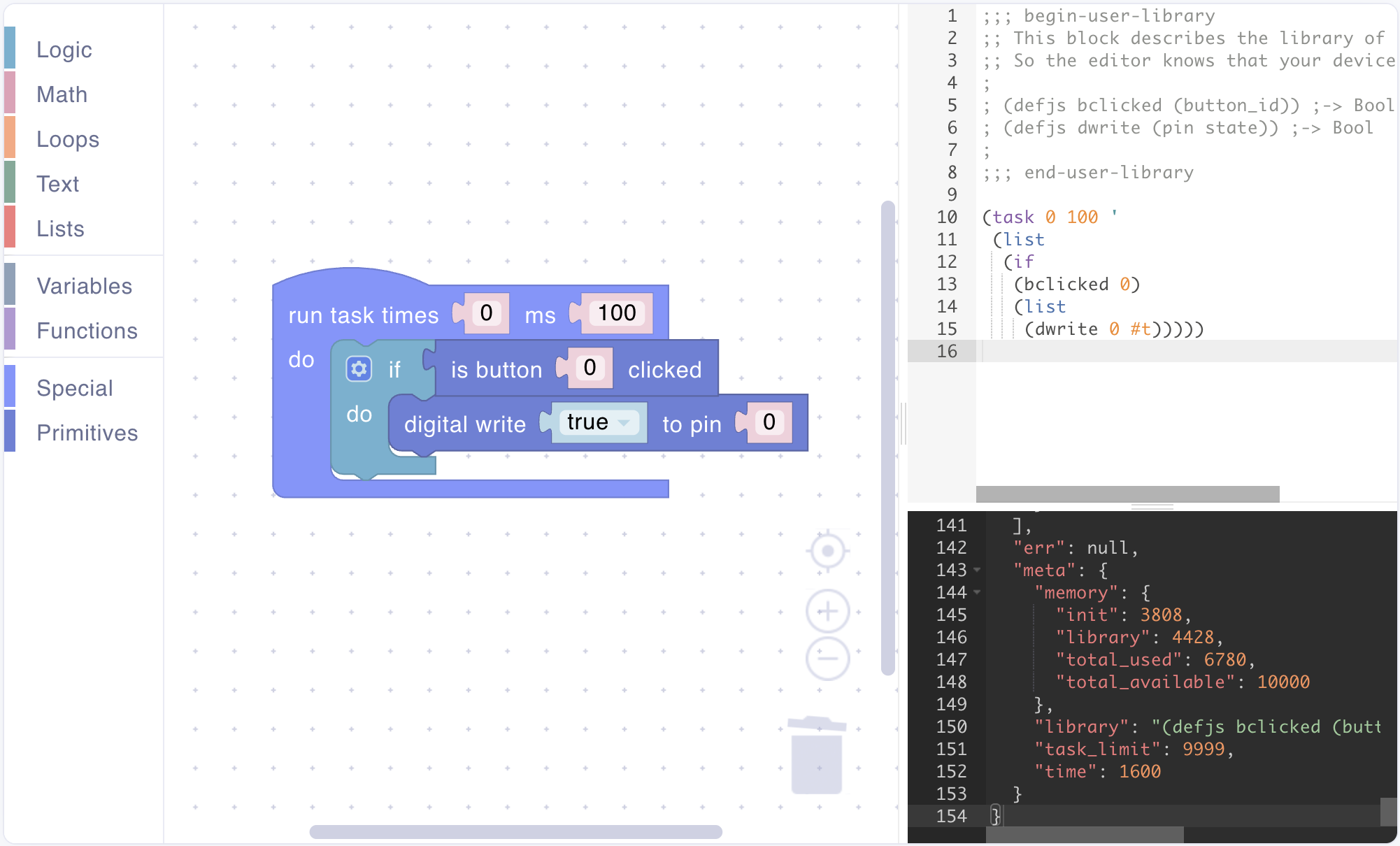

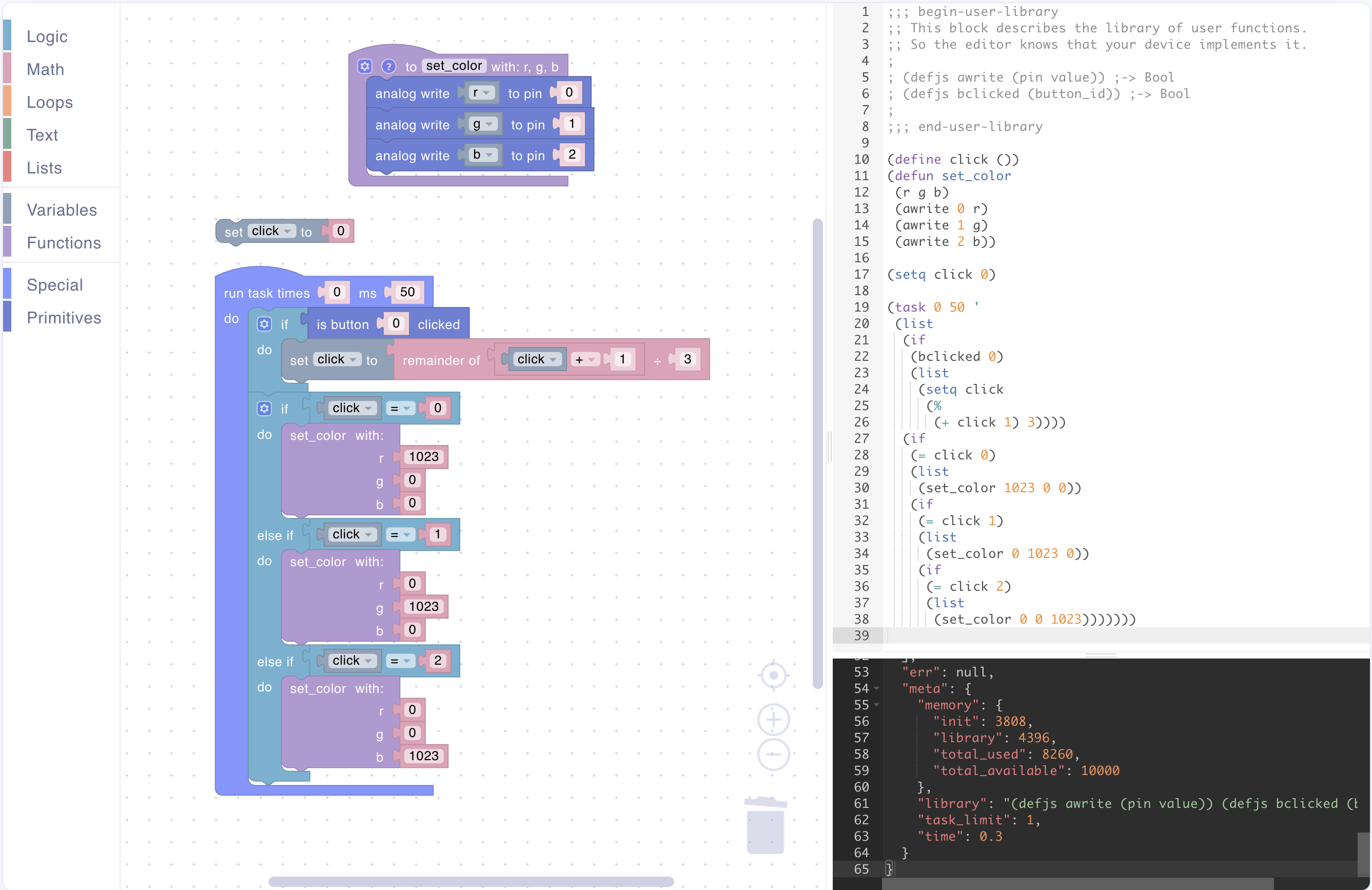

5. bclicked - Button Clicked

Checks whether a registered button was clicked since the last check.

Parameters:

  • index (Int): Button index in the bclicked register (0-based)

Returns: #t once per click, then () until the next click

A click is a press followed by a release shorter than the long-press threshold. Reading it clears it, so a second (bclicked 0) in the same task pass returns (). A click that no script reads clears itself after about 10 seconds, which means a script that starts just after a press would react to it. Call Uniot.resetLispButtons() from a start hook to drop such presses:

C++ Registration:

addLispButton() does everything a button needs in one call: it creates the Button, polls it every 100 ms, links it to bclicked, and returns the button's index. A long press is 3 seconds. The pin gets the internal pull its active level needs (pull-up for LOW, pull-down for HIGH); pins without that pull need an external resistor.

Indices follow registration order in the bclicked register. The WiFi reset button from configWiFiResetButton() is linked during Uniot.begin(), so buttons added before begin() come before it and buttons added after begin() follow it. Adding your buttons after begin(), still in setup(), keeps the reset button at index 0 and numbers yours from 1. Pass false as the third argument of configWiFiResetButton() to keep the reset button out of the register altogether.

For a button with different timing, create and poll it yourself, then register it. The scheduler task must be named:

Register System Internals

The Register system consists of two main components:

GpioRegister

Manages GPIO pin mappings:

  • Stores physical pin numbers in named registers (dwrite, dread, awrite, aread)

  • Maps logical indices to physical GPIO numbers

  • Sets the pin mode when a pin is registered

ObjectRegister

Manages object references (like Button instances):

  • Stores pointers to registered objects, appending to the named register (bclicked)

  • Associates objects with FOURCC identifiers that the platform shows on the Registers tab

  • Provides type-safe object retrieval and detects objects that were destroyed

PrimitiveExpeditor Access

Built-in primitives access the Register system through PrimitiveExpeditor. The proxy returned by getAssignedRegister() is bound to the register whose name equals the primitive's name, so dwrite reads the dwrite register:

Creating Custom Primitives

Basic Structure

A primitive is a C++ function with a specific signature:

Parameters:

  • root: Garbage collector root (memory management)

  • env: Current environment (scope/context)

  • list: Argument list from Lisp

Three rules apply to every primitive:

  • describe(...).init(...) is the first statement. When you register a primitive, Uniot Core calls it once with null arguments to read its description and jumps out of describe() before the body runs. Code placed before describe() would run with those null arguments.

  • The name in describe() is the Lisp name. The C++ function name does not matter. The described name is what scripts call, what the platform lists, and the name of the register the primitive can read.

  • Register before Uniot.begin(). addLispPrimitive() queues the primitive; it is installed when a script's interpreter is built, and the persisted script starts at the end of begin().

Using PrimitiveExpeditor

PrimitiveExpeditor is a helper class that simplifies primitive creation by handling argument validation, argument extraction, type conversion, error reporting and return value creation.

Method
Purpose

describe(name, returnType, count, ...)

Declares the primitive: Lisp name, return type, number of arguments, then one Lisp:: type per argument (up to 16)

.init(root, env, list)

Binds the description to the current call; the result is the expeditor

assertDescribedArgs()

Checks the argument count and types against the description and evaluates the arguments; call it first

getArgInt(i)

Reads argument i as int

getArgBool(i)

Reads argument i as bool

getArgSymbol(i)

Reads argument i as const char *

getArg(i)

Returns argument i as a raw Lisp object, for Lisp::Cell arguments

getArgsLength()

Number of arguments actually passed

makeInt(v), makeBool(v), makeSymbol(s)

Builds the return value

terminate(msg)

Stops the script with [name] msg; see Reporting Errors

getAssignedRegister()

Proxy to the register named after the primitive; see Linking Objects to a Primitive

Step-by-Step Example

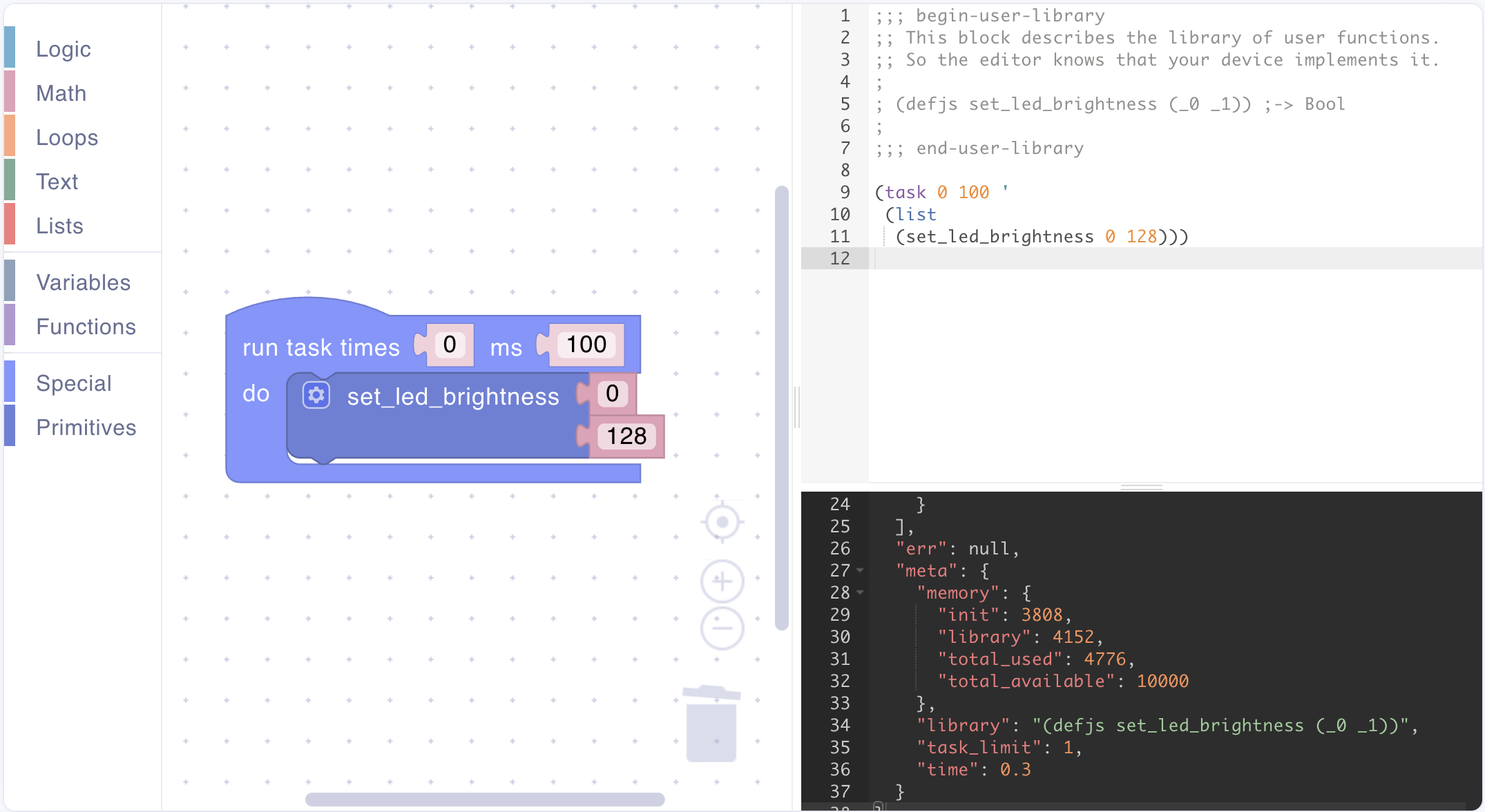

Let's create a primitive that sets the brightness of one of several LEDs. Like the built-ins, it takes a logical index rather than a GPIO number, so the script does not depend on the wiring.

1. Declare the Primitive

2. Implement the Primitive

Why 0-255 here and 0-1023 for awrite? Arduino's default analogWrite() range is 0-255. Uniot Core switches the device to a 10-bit range only when analog output pins are registered with registerLispAnalogOutput(), and in that case awrite already does what this primitive does. A custom primitive that drives PWM on its own pins sees whatever range the sketch has configured.

3. Register the Primitive

4. Use in Scripts

Once the device reconnects, the Visual Editor shows a set_led_brightness block and generates its defjs line:

Reporting Errors

expeditor.terminate("message") is the way a primitive refuses to continue. It raises an interpreter error, so nothing after it runs: the script stops, the stop hook (if any) receives LispStopReason::Failed, and [primitive_name] message is published to the device's Logs tab. The built-ins use it for an unregistered index; use it for anything the script cannot recover from, such as an argument out of range or hardware that is not ready.

For conditions the script should handle itself, return a value instead. A sensor read that can fail is better off returning a sentinel, for example -1000 for "no reading", so the script can skip that pass and try again on the next one.

Linking Objects to a Primitive

A custom primitive can use the same Register system as bclicked. Link a C++ object under the primitive's name and the primitive fetches it by index, so scripts address instances by 0, 1, 2 rather than by anything hardware-specific:

Each registerLispObject() call appends to the register, so indices follow registration order. The FOURCC id is what the platform shows for that slot on the Registers tab. If an object is destroyed, getObject() returns nullptr for its slot instead of a dangling pointer.

Best Practices

Descriptive Names

Use clear, descriptive names that indicate what the primitive does:

Validate Inputs

Check every argument before touching hardware, and let terminate() report what went wrong. A silent makeBool(false) hides the mistake from whoever is editing the script:

Keep Primitives Short and Non-blocking

A primitive runs inside the scheduler pass that evaluates the script, so everything else on the device waits for it. Do not delay() or poll in a loop. Read a value, write a value, or kick off work that a scheduler task finishes later:

Integers Only

UniotLisp has no floating-point type. Scale fractional values before returning them, and say so in the primitive's name or documentation:

Use Logging

Log operations for debugging and monitoring:

Return Meaningful Values

Choose return types that provide useful information:

Conclusion

Primitives are the foundation of dynamic behavior in Uniot Core, enabling both simple GPIO operations and complex device control through scripts.

Built-in Primitives provide:

  • Immediate access to common hardware operations

  • Safe, validated GPIO access through the Register system

  • Consistent interface and value ranges across different devices

  • No additional C++ code required

Custom Primitives enable:

  • Extensibility: Add new capabilities without modifying the core framework

  • Flexibility: Update device behavior through scripts

  • Maintainability: Separate hardware logic from business logic

  • Optimization: Performance-critical operations in C++

By combining built-in and custom primitives with scripting, you can create powerful, flexible IoT devices that are:

  • Remotely Reconfigurable: Update logic via MQTT without reflashing

  • Hardware Abstracted: Scripts work across different physical setups

  • Safe: The Register system prevents access to unregistered pins

  • Maintainable: Clear separation between firmware and scripts

Further Reading
